Bimota Tesi 3D Spec
|
| Engine and transmission |

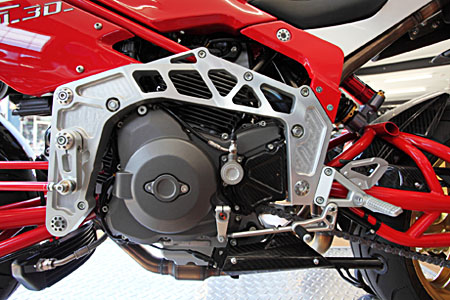

Engine type: Ducati L4, Twin Cylinder 4 stroke
|
| Displacement: 1078 cc |
| Bore x stroke: 98 x 71.5 mm |
| Compression rate: 10,7:1 |
| Injection : Walbro By Bimota |
| Power: 98 HP at 7500 RPM |
| Torque: 105 Nm at 5500 RPM |
| Gear box: 6 Speed |
| Clutch: Dry Clutch Multi Disc |
| |
| Chassis, suspension, brakes and wheel |
| CNC milled aluminium plates, Chrome-molybdenum Gridframe and Carbon fibre |
| Front wheel suspension: Extreme Tech tension loaded, adjustable traction and compression unit |

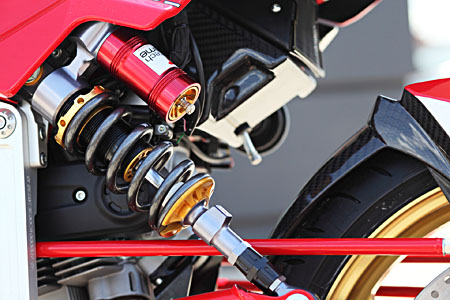

| Suspension rear: Extreme Tech adjustable traction and compression unit, Pre-loaded spring |

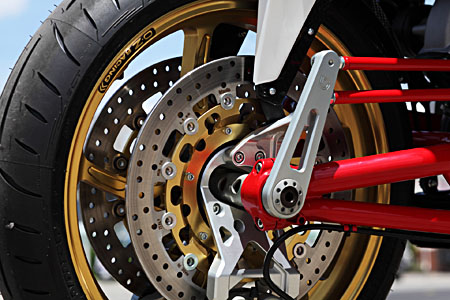

| Front brakes: 2 Brake discs 320 mm, 4-piston Brembo radial caliper |
| Rear brakes: Brake disc 220 mm, Bimota brake caliper |
| Front wheel: 120/70_17 |
| Rear wheel: 180/55_17 |
| Overall dimensions: 2100l x 720w x 1120h mm |
| Seat height: 800 mm |
| Wheelbase: 1390 mm |
| Dry weight: 167 Kg |
| Fuel tank: 16 L |
| |
| |
| |
| |
| |
