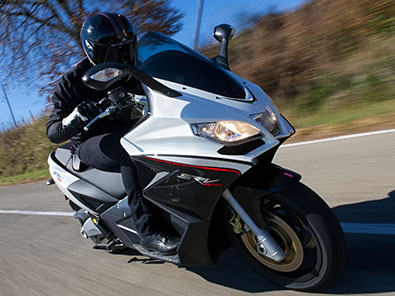

| Aprilia SRV 850 規格表 |
| 呎吋 SIZE |
| 全長 Length |
2,237mm |
| 全闊 Width |
790mm |
| 全高 Height |
-
|
| 軸距 Centre to centre distance |
1,593mm |
| 座位高度 Saddle height |
780mm |
| 最低離地距 Height from the ground |
- |
| 淨重 Dry weight |
249kg |
| 油箱容量 Fuel tank capacity |
18.5L |
| 引擎 ENGINE |
| 引擎模式 Engine |
水冷四衝程90度V型雙汽缸SOHC 8氣門
90° V-twin engine, 4-stroke |
|
排氣量 Total displacement
|
839.3c.c. |
| 最大馬力 Max. power at the crank |
76ps / 7,750rpm
|
最大扭力 Max. torque at the crank
|
7.8kg-m / 6,000rpm
|
| 壓縮比 Compression ratio |
- |
| 缸徑x衝程 Bore x Stroke |
88mm x 69mm |
| 供油系統 Fuel system |
38mm電子燃油噴注系統
Electronic injection with Ø 38 mm single body |
| 前傾角 Steering angle |
- |
| 拖曳距 Trail |
- |
| 起動 Starting |
電動 Electric |
| 傳動系統 Gear box |
CVT無段變速,皮帶傳動
Twist-and-go CVT with torque server |
| 車身 CHASSIS |
| 車架型式 Frame |
高拉力鋼管雙搖籃式車架
Double cradle in high strength tubular steel |
| 前懸掛系統 Front suspension |
直徑41mm正立前叉,122mm行程
41 mm diameter hydraulic telescopic fork with straight stanchions and set-back pin (122 mm wheel vertical travel) |
後懸掛系統 Rear suspension
|
單筒油壓尾避震,附7段彈簧預載
With laterally mounted, horizontal, hydraulic monoshock. Seven-position spring preload adjustment. |
前制動系統 Front Brakes
|
2 x 300mm半浮動碟配Brembo 2活塞浮動卡鉗,附ABS
Double, 300 mm semi-floating stainless steel discs with two Brembo double piston 28 mm floating callipers. |
後制動系統 Rear Brakes
|
280mm鑽孔碟配兩活塞式卡鉗,附ABS
280 mm Ø stainless steel disc and 25.4 mm Ø double piston calliper. |
| 前輪胎 Front Tyres |
120/70 - R16(57H) |
| 後輪胎 Rear Tyres |
160/60 - R15(67H) |
